life safety
communication kit
All-In-One pots line replacement
solution for vital communication
INDUSTRY-LEADING HARDWARE
MAJOR U.S. WIRELESS CARRIER DATA
FULL STACK TECH SUPPORT
INDUSTRY-LEADING HARDWARE
MAJOR U.S. WIRELESS CARRIER DATA
FULL STACK TECH SUPPORT
how do you replace
plain old telephone service (POTS) lines when they’re gone?
- The original POTS technology is over 100 years old
- Telecom providers view the analog phone lines as obsolete
- The Federal Communications Commission (FCC) reports POTS isn’t sustainable
- The FCC is “seeking ways to phase out relics of a bygone industry”
- Support and service is being discontinued, monthly costs are rising
- Many life safety systems were designed using POTS to connect to central stations
- These devices will need to be updated as the use and support of POTS declines
- Upgrading all equipment and wiring infrastructure is extremely costly
Why The life safety communication Kit?
THIS SIMPLE ALL-IN-ONE KIT INSTANTLY REPLACES POTS LINES WITH A SECURE, DEPENDABLE LTE CONNECTION
Save $$$
on rising monthly pots line bills
update technology
from soon-to-be-extinct pots lines
no major investments
needed in expensive equipment and wiring infrastructure
emergency notifications
Instant email, text, and call center notifications… because every second counts, and you’re likely the closest to respond
virtual monitoring
Real-time and historical event monitoring on any device with virtual platform
LOWER monthly COSTS
Affordable, fixed cost solution reduces Life Safety expenses
universal compatibility
Use your existing hardware and wiring infrastructure
Key Benefits
Fixed, Low Monthly Cost
Industry-Leading Hardware
All Major U.S. Carriers Supported
24 / 7 / 365 Managed Data Support
Cross-Carrier Data Pooling for Coverage
Optimal Carrier Location Matching
One Simple Bill For All Carriers
Data Usage Analytics & Reporting
Dual SIM and Static IP Options Available
Managed Device
& Data Services
Fixed, Low Monthly Cost
Industry-Leading Hardware
All Major U.S. Carriers supported
24 / 7 / 365 Managed Data Support
Cross-Carrier Data Pooling for Coverage
Optimal Carrier Location Matching
One Simple Bill for All Carriers
Data Usage Analytics & Reporting
dual sim and Static IP options Available
Managed Device & Data Services
INCLUDES BEST IN-CLASS TECHNOLOGY & THE TOP LTE CARRIERS
FCC Approved
carrier tested & certified
ul listed
national fire protection agency registered
Life Safety Communication Kit Specs
General |
|
| Size | 118(L) × 63.5(W)x 20 mm(H) |
| Connector | RJ11, Mini-USB, DC Jack |
| Certification | UL864; FCC Part 15B |
Power |
|
| Power Input | 12VDC |
| Power Current | Max. 1.3A |
GSM |
|
| GSM Module | LISA-C200, CDMA 1xRTT |
| Band | Dual-band 800/1900MHz |
| RX Sensitivity | -108 dBm |
| Down/Up Link | 154Kbps |
| Protocols | Embedded UDP/TP, TCP/IP, and HTTP |
| AT Commands | Enhanced AT command set IS-707.3 3GPP 27.005,3GPP 27.007 and ITU-T V.25 3GPP 27.010 MUX protocol |
| Packet Data | Mode: Class B, Multislot10 Coding Schemes : CS1-CS4 Packet Channel: PBCCH/PCCCH |
| SMS Functionality | Text, PDU, MO/MT, Cell Broadcast |
MCU |
|
| MCU | ST Cortex M0 |
| Flash | 64K byte |
| SDRAM | 8K byte |
| Frequency | 48MHz |
Interface |
|
| RJ11 | DTMF Tone input |
| Mini-USB | RS232, Setting Parameter |
DTMF Signal |
|
| Input Signal Level | Max : 1 dBm Min : -29 dBm |
| Twist Accept Limit(Positive) | 10 dB |
| Twist Accept Limit(Negative) | 10 dB |
| Dial Tone Tolerance | 18 dB |
| Noise Tolerance | -12 dB |
| Third Tone Tolerance | -16 dB |
| Frequency Deviation Acceptance | Max ±1.5% |
| Frequency Deviation Rejection | Min ±3.5% |
| Power Up Time | 30ms |
LEDs |
|
| Power LED | Still On – Power on |
| Server Status LED | Blinking: Try Host Connection; Still On: Host Connected |
| Internet Status LED | Off: Internet off; Still On: Internet on |
| Signal Status LED | Off: No Signal; Blinking: Weak Signal; Still On: Strong Signal |
| Battery Discharge LED | Off: Battery Charging/No Battery; Blinking: Battery Discharging |
| Battery Charging LED | Off: Battery Discharging/Battery Fully/No Battery; Still On: Connected |
Life Safety Communication Kit Specs
General |
|
| Size | 118(L) × 63.5(W)x 20 mm(H) |
| Connector | RJ11, Mini-USB, DC Jack |
| Certification | UL864; FCC Part 15B |
Power |
|
| Power Input | 12VDC |
| Power Current | Max. 1.3A |
GSM |
|
| GSM Module | LISA-C200, CDMA 1xRTT |
| Band | Dual-band 800/1900MHz |
| RX Sensitivity | -108 dBm |
| Down/Up Link | 154Kbps |
| Protocols | Embedded UDP/TP, TCP/IP, and HTTP |
| AT Commands | Enhanced AT command set IS-707.3 3GPP 27.005,3GPP 27.007 and ITU-T V.25 3GPP 27.010 MUX protocol |
| Packet Data | Mode: Class B, Multislot10 Coding Schemes : CS1-CS4 Packet Channel: PBCCH/PCCCH |
| SMS Functionality | Text, PDU, MO/MT, Cell Broadcast |
MCU |
|
| MCU | ST Cortex M0 |
| Flash | 64K byte |
| SDRAM | 8K byte |
| Frequency | 48MHz |
Interface |
|
| RJ11 | DTMF Tone input |
| Mini-USB | RS232, Setting Parameter |
DTMF Signal |
|
| Input Signal Level | Max : 1 dBm Min : -29 dBm |
| Twist Accept Limit(Positive) | 10 dB |
| Twist Accept Limit(Negative) | 10 dB |
| Dial Tone Tolerance | 18 dB |
| Noise Tolerance | -12 dB |
| Third Tone Tolerance | -16 dB |
| Frequency Deviation Acceptance | Max ±1.5% |
| Frequency Deviation Rejection | Min ±3.5% |
| Power Up Time | 30ms |
LEDs |
|
| Power LED | Still On – Power on |
| Server Status LED | Blinking: Try Host Connection; Still On: Host Connected |
| Internet Status LED | Off: Internet off; Still On: Internet on |
| Signal Status LED | Off: No Signal; Blinking: Weak Signal; Still On: Strong Signal |
| Battery Discharge LED | Off: Battery Charging/No Battery; Blinking: Battery Discharging |
| Battery Charging LED | Off: Battery Discharging/Battery Fully/No Battery; Still On: Connected |
making connectivity easier for
- Property Management
- Hospitality
- Healthcare Facilities
- Manufacturing
- Education Campuses
- Financial Services
- Legal Services
- Retailers
- Franchise Owners
- Oil & Gas
- Property Management
- Hospitality
- Healthcare Facilities
- Manufacturing
- Education Campuses
- Financial Services
- Legal Services
- Retailers
- Franchise Owners
- Oil & Gas
fire, smoke, & Flood Alarm Panels
security & burglar systems
elevator Alarm Panels
HOW DOES IT WORK?
USING AN LTE CONNECTION WITH YOUR EXISTING SYSTEM

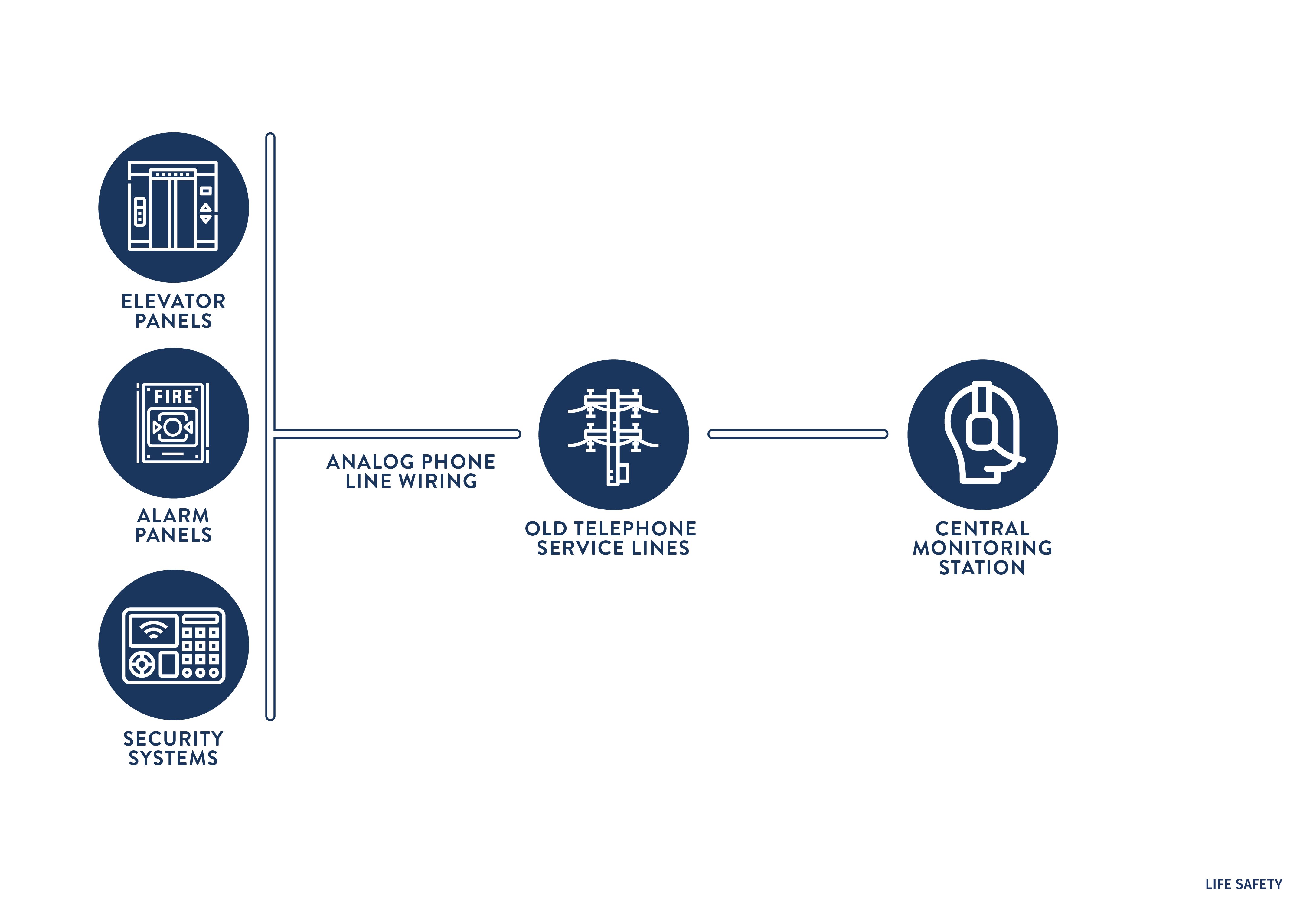

THE PAST
ANALOG-ERA INFRASTRUCTURE
(SUPPORT ENDING SOON)
- Monthly Costs Rising
- Old Phone Lines Will Soon Be Extinct
- Complete Upgrade of Equipment & Wiring Is Unnecessary and/or Cost-Prohibitive
- No Alternative Backup Line
- No Virtual Management Platform

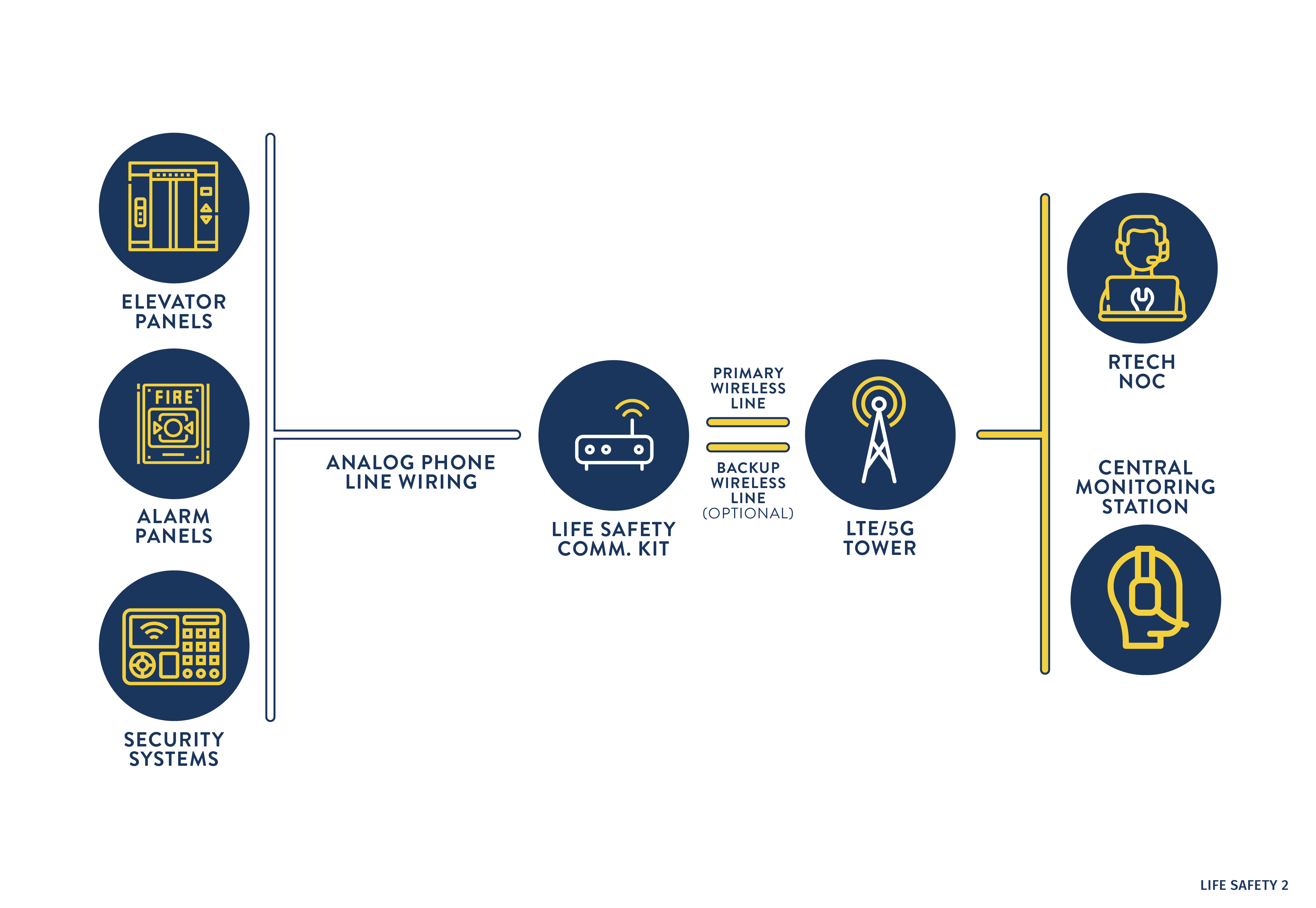

THE FUTURE
RTECH LIFE SAFETY KIT
(MODERN WIRELESS + ADDED BENEFITS)
- Lower Monthly Expense
- Future-Proof Your Technology
- No Infrastructure Updates Needed
- Backup Wireless Line (Optional)
- Virtual Monitoring Platform
What’s The Virtual Monitoring Center?
Dashboard Controls
View and control your system from the palm of your hand with the easy to navigate Dashboard. Watch your system from anywhere in the world while ensuring it is always connected, monitored, and safe.
instant notifications
Easily manage notifications for text or email alerts on-the-go. You have control over the amount and frequency of your alerts so you can have confidence that your system is working 24/7/365.
geolocation rules
Enable automatic rules and alerts based on your smartphone and smartwatch location through geolocation services. Setup notifications for specific events when you are away.
user management
Provide additional layers of security and protection by creating passwords and user accounts. Allow users to view dashboards and receive alerts securely.
